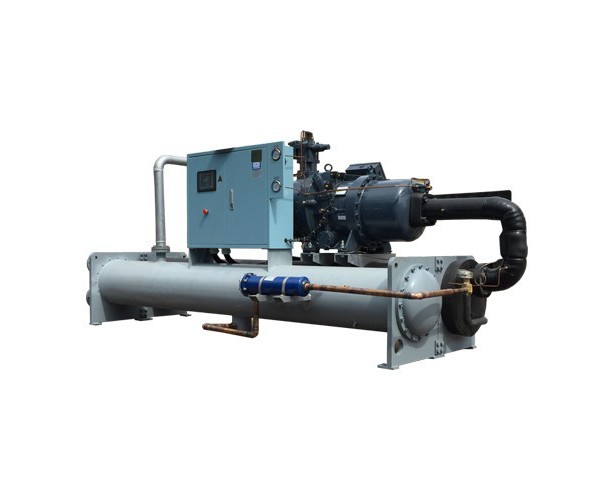

Screw type water chiller首頁>Products>Screw type water chiller
螺桿式冷水機
  • 產品詳情


1. Compressor

German semi-hermetic twin screw compressor has longer bearing life and ensures long running.

Press built-in three-stage oil separator, long-term 10 m oil filter, lubrication effect improved significantly

Four energy control valves can be satisfied, four stages of sectional energy regulation, 25% - 100% stepless energy regulation.

The suction position of the special energy saver can be changed with the energy regulating valve to save more energy.

A variety of refrigerants are available. Besides R22, environmental friendly refrigerants such as R407C are also available.


2. Condenser and Evaporator

Use of High Efficiency Horizontal Shell-and-Tube Heat Exchanger

The product meets the requirement of national pressure vessel

Imported high-quality tube sheets and threaded copper tubes are used as raw materials to greatly increase the heat transfer efficiency of refrigerant and water.

The product flow structure is simple, heat exchange is stable, maintenance is convenient.

The product has the advantages of beautiful appearance, small volume, large heat transfer and low failure rate.


3. Microcomputer Controller

The performance of embedded high-speed microprocessor is much higher than that of single-chip computer used in the same industry.

Equipped with high stability memory, 512K program storage capacity, 128K power-off data storage capacity, stable storage data and will not lose

The chip has compact structure, low calorific value and strong anti-interference ability.

It has the function of timing switch, fault inquiry and fault alarm.

Using 485 communication transmission technology, the transmission data is far away and the signal does not attenuate, up to 1200 meters.

With multi-controller on-line control function, reserve PC computer monitoring function

With online multilingual switching function

Touch screen full graphical man-machine interface, providing password protection function, easy to operate




                    型號

LC-   132WCD

LC-   193WCD

LC-    256WCD

LC-    419WCD

LC-    547WCD

LC-    723WCD

 項目

電源規格

ˉ

380V/3PH/50HZ

制冷量

kcal/h

113520

165980

220160

360340

470420

621780

kw

132

193

256

419

547

723

總功率

kw

31

43

58

90

115

153

運轉電流

A

52

73

98

152

194

258

容量控制

%

100-75-50-25-0

壓縮機

型式

ˉ

半封閉雙螺桿式

起動方式

ˉ

分繞組

Y-△

油加熱器

w

200

200

200

300

300

300

冷凍油

種類

ˉ

B320SH

填充量

kg

9

15

15

22

28

28

冷媒

種類

ˉ

R-22

填充量

kg

21

30

39

61

78

104

控制方式

ˉ

外平衡熱力膨脹閥

蒸發器

型式

ˉ

殼管式高效換熱器

冷凍水流量

m3/h

23

33

44

72

94

124

壓力損失

kPa

54

54

57

59

62

67

水管接口

PT

 3″

 3″

 4″

 5″

 6″

 6″

冷凝器

型式

ˉ

殼管式高效換熱器

冷卻水流量

m3/h

29

43

57

94

122

162

壓力損失

kPa

49

51

54

57

59

62

水管接口

PT

 2-1/2″

 3″

 3″

 4″

 4″

 5″

保護裝置

   高低壓力開關,防凍開關,可熔栓,壓縮機過載保護,逆缺相保護,電機過熱保護,排氣溫度過高保護,油溫過高保護,過欠壓保護,冷卻水溫度過高保護,冷凍水流量不足保護,冷卻水流量不足保護,冷卻塔風機過載保護

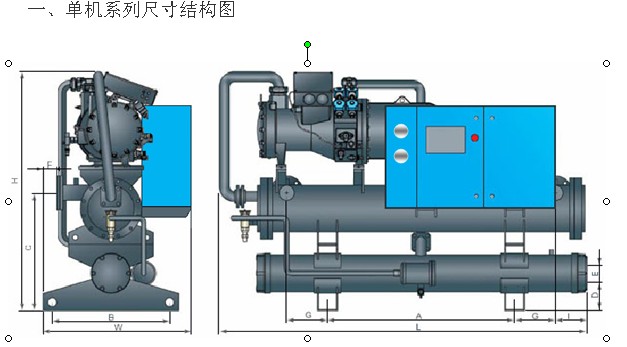

外形尺寸

L

mm

2175

2245

2860

2910

3510

3595

W

mm

935

935

1015

1055

1105

1175

H

mm

1430

1655

1710

1990

2140

2195

A

mm

1100

1100

1200

1300

1600

1600

B

mm

690

690

790

790

900

980

C

mm

690

820

860

1010

1120

1160

D

mm

170

240

240

245

275

240

E

mm

100

120

120

175

175

240

F

mm

75

80

105

100

125

175

G

mm

240

230

475

405

550

540

I

mm

75

170

200

245

250

340

機組凈重

kg

1020

1270

1400

2070

2790

3240

運行重量

kg

1120

1420

1580

2340

3120

3760

運行噪音

dB(A)

73

78

78

82

85

85


Remarks:

1) Unit conversion: 1 kW cold capacity = 860 kcal/hr 1RT = 3024 kcal/hr 1kcal/hr = 3.969 BTU/hr 1 metric horsepower (HP) = 0.735 KW

2) Parameter test conditions: inlet temperature of chilled water 12 C, outlet temperature 7 C, inlet temperature 30 C, outlet temperature 35 C, fouling coefficient 0.0001 M2 C/W

3) R407C type environmental friendly refrigerant can be selected as refrigerant

4) Machine voltage can be ordered according to customer's requirements.

5) If there are other special requirements, please specify the requirements before ordering.

6) The above parameters are subject to change without prior notice.
